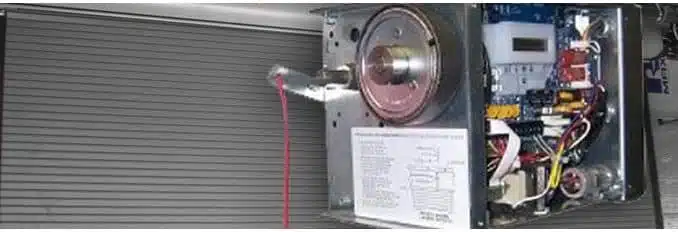

The CDX™ is UL 325 2010 compliant and provides durable and reliable operation. This light duty door operator is designed for use on counter and counter fire door applications. Common applications include factories, schools, concessions, hospitals, cafeterias and retail settings.
Product Details
Mounting
Front of hood (chain/sprocket coupling to door)
Motor
- 1/2 horsepower
- 115 VAC single phase motor with high start torque
- Intermittent-duty
- NEMA 42 frame open drip-proof construction
- Instant reversing with automatic reset thermal overload
- Drive Reduction
- Helical gear primary reduction and hardened bevel gear secondary reduction
Power Train
Oil impregnated bushing to ensure long life
Cycles Per Hours
Operator tested and approved by UL for 5 cycles per hour at rated load of 70 ft-lbs/sec
Limit System
Adjustable linear type; remains synchronized with door during release operation
Display
16-character LCD display provides easy-to-read set-up and diagnostics with backlight for low-light conditions
Cycle Counter
Displays total cycles logged over the operator’s lifetime to support warranty and service functions
Independent Timers
Automatic maximum run timer stops the close function if present run time is exceeded, allowing for inspection
Control System
Warranty
One year limited warranty
Options
Modes
Radio Hookups
Option available for fast, simple radio frequency connectivity to enable remote door operation.
Hand Crank
Optional on standard counter door comes with electrical interlock.
Governor
Release
- Option available on Counter Fire Door only. Spring-loaded for automatic release of door by optional fuse link, Fire SentinelTM or similar fire detection system
