Commercial Garage Doors

Discover durable, high-performance commercial doors designed to meet the toughest demands with unmatched quality and service.

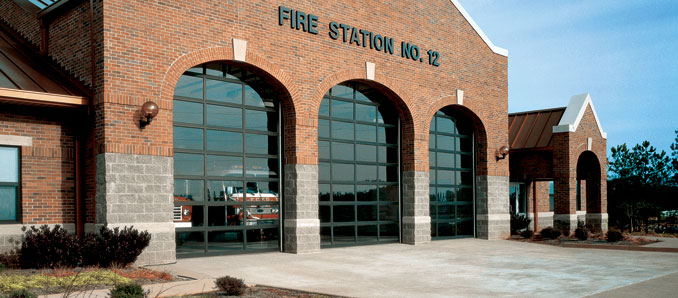

Commercial Aluminum Glass Garage Doors

Overhead Door’s aluminum sectional doors offer an attractive solution for commercial and industrial applications where visual access, light infiltration and aesthetics are key design considerations. Offered with a variety of stile widths, glazing materials, track styles, and finish options. Ideal for service stations, fire stations, professional facilities and retail environments, our sectional aluminum doors are practical, durable and handsomely styled — and engineered for long life, low maintenance and enduring beauty.

Product Details

1 3/4″ (45 mm) thick
Corrosion-resistant 6063-T6 aluminum sections with galvanized fixtures and hinges promotes durability and trouble-free operation
1/4″ (6 mm) diameter through-rods on all stiles and rails enhances strength and sturdiness
Top-quality materials, excellent field service and optional maintenance program contribute to extended door life, low maintenance costs and maximum productivity
Doors up to 26’2″ (7976 mm) wide and 20’1″ (6121 mm) high

Options

Glazing choices include DSB glass, plexiglass, tempered glass, clear lexan, and wire glass
Standard clear anodized finish for low-maintenance and corrosion-resistance
Solid construction withstands windloading of 20 psf, with a higher windload option to meet requirements
Optional finishes include bronze anodization or a variety of standard powder-coat paint colors
Manual pull rope operation with optional chain hoist or electric motor operator

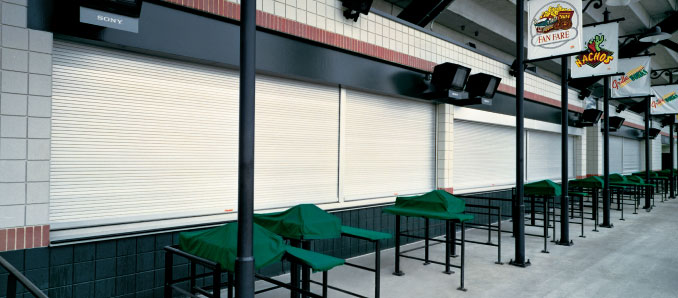

Commercial Counter Doors

Overhead Door Corporation´s rolling counter doors provide a multitude of attractive solutions for smaller openings to 20′ wide and 9′ high. Ideal for a host of applications in commercial, retail, corporate and professional environments, our comprehensive system of counter doors encompasses three basic types — metal curtain, wood curtain and integral frame and sill.

Product Details

Choice of aluminum, steel or stainless steel offers durable, attractive, and versatile solutions for retail and commercial/industrial applications and openings to 20′ wide and 9′ high (6096 mm and 2743.2 mm).
Integral frame and sill counter doors in sizes up to 9′ wide and 4′ high (2743 mm and 1219 mm) provide the convenience of a factory-assembled unit and an attractive finished look
Wood curtains in Douglas fir, red oak, white oak, birch, or exotic species for openings to 12′ wide and 8′ high (3658 mm and 2438 mm) complement interior design features

15-month limited warranty

Options

Choice of curtain materials and a variety of finish options for enhanced design flexibility
Motor operation option and an array of operator controls simplifies door operation (not available on integral frame and sill counter doors)

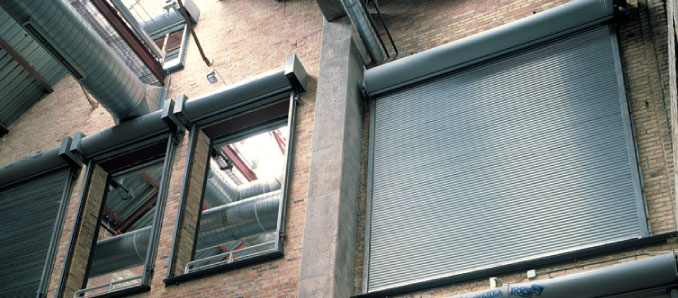

Commercial Fire-Rated Garage Doors

Overhead Door Corporation offers a wide array of rolling steel doors to meet the most demanding fire safety standards, unusual opening sizes and discerning aesthetic requirements. Designed to close automatically in the event of a fire or alarmed event, our fire-rated doors are available for service door and counter applications in commercial, industrial, institutional and retail projects. All doors comply with NFPA-80, and are listed for both masonry and non-masonry applications — including installation to wood or steel jambs within drywall. The Fire Sentinel® time-delay release device provides an added measure of safety to control the doors’ closure. Our FireKingTM Fire Doors feature an innovative floor reset hoist system, designed to eliminate the need to release a fire door’s spring tension on fire drop mode and allows one person to reset the door from the floor.

Product Details

Wide range of sizes and styles meet or exceed industry fire safety testing standards including Underwriters Laboratories (UL & ULC), Factory Mutual (FM), New York City, and the State of California (CSFM) requirements
Doors are compliant with all NFPA-80 standards
Constructed of galvanized or stainless steel in a variety of gauges, slat designs and finishes for unsurpassed strength, durability and style
Door closes automatically under governor control after separation of fuse link. UL recommends a 165°F (74°C) fuse link for ambient conditions for 100°F (38°C) or less, or a 212°F (100°C) fuse link for ambient conditions over 100°F (38°C)
Door guide assembly rests on the sill or floor to provide an attractive finished appearance eliminating setup gaps.
Guides expand upward during a fire
Our rolling service fire doors can accommodate openings up to 41’2″ wide (12547.6 mm) or 25’4″ (7721.6 mm) high (max. 683 sq ft or 63452776 sq mm) with up to a 4-hour UL rating
Counter fire doors fit openings to 14′ (4267.2 mm) wide and 10′ (3048 mm) high with either a 3-hour or 1 1/2-hour UL rating, and are optionally available with a 1 1/2-hour rated plastic laminated countertop
Integral frame and sill counter fire doors with a 1 1/2-hour UL rating afford a handsome finished look
Motor operated counter fire door does not require tension reset after automatic fire release

Options

Operation: Options include push-up, chain hoist, crank and electric motor (fire doors: RHX® or RSX®; fire counter doors: CDXTM)
UL-listed FireLite® vision lites in 4-, 3-, and 1 1/2-hour labels allow visual access without compromising safety
Additional safety options include the Fire Sentinel® time-delay release device, photoelectric or ionization-type smoke detectors (with or without heat detector), as well as solid-state horn, strobe or voice enunciators
Windload options are available for Florida Building Code (FBC), Miami-Dade, Texas Department of
Insurance (TDI)
UL-listed brush-type smoke seals satisfy smoke retardation requirements
Firestop® fire-resistant core countertops covered with popular brands of decorative laminates allow
coordination of project design elements for use with counter fire doors

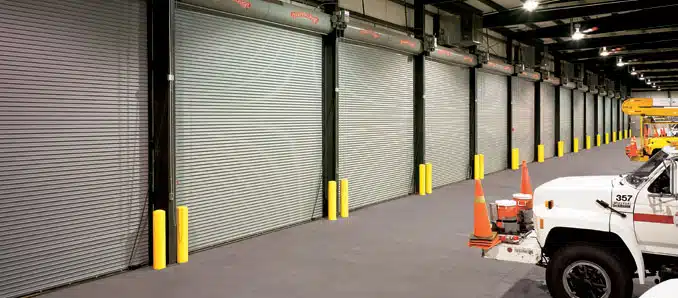

Commercial Rolling Steel Garage Doors

The breadth of Overhead Door Corporation’s rolling service door product line ensures that your project specifications will be met with ease and style. Ideal for situations where sideroom and headroom are at a premium, our upward-coiling service doors fit openings up to 1500 sq. ft. (139,355 sq.mm) and are available with the industry’s widest array of slat profiles, curtain materials and colors, offering a virtually endless array of options to satisfy both aesthetic considerations and working requirements.

Product Details

Galvanized steel, stainless steel and aluminum doors in a variety of gauges, slat profiles, finishes and options
Standard door widths up to 30′ (9144 mm) and 28′ (8534 mm) in height, and custom door sizes up to 1500 sq. ft. (139,355 sq.mm)
Rolling service doors for heavy-duty, medium-duty and light-duty applications
Coil-Away™ 600 Series door offers an economical solution for openings to 16′ wide and 16′ high (4877 mm and 4877 mm)
Stormtite™ 620 and Stormtite™ 625 Series insulated doors provide extra protection against the elements
Solid construction withstands windloading of 20 psf, with a higher windload option to meet requirements
Structural steel angle or roll-formed guide design ensures smooth curtain operation
Helical torsion springs designed for 20,000 cycles, with high usage option to 100,000 cycles
Each door is computer-designed to ensure precision manufacturing and facilitate installation
Computer-matched door counterbalance system and optional motor operator promote precision operation and performance

Options

Roll-formed galvanized steel, stainless steel or aluminum curtains in weights from 26 to 14 gauge (not all gauges available in all materials)
Curved or flat slats in a range of sizes and profiles, including the C-600, a 6″ (152 mm), 1 3/8″ (35 mm) curved slat for heavy-duty applications
Finishes include primed and painted steel, optional powder-coated paint in 197 standard colors, or
colormatched to specification, as well as clear or colored anodized aluminum
Face of wall mounting is standard with between-jambs mounting available for medium and heavy -duty doors
Push-up, chain-hoist, crank or motor operation available
Electric motor option with an array of radio and remote controls simplifies door operation
Ventilated slats with perforations or fenestration extend applications to open-air environments (610 Series only)
Fenestrations are available on the 620 (with vision lites) and the 625 (double glazed insulated or single glazed non-insulated).
Weatherstripping (620 Series) and/or insulated slats (625 Series) offer additional protection against air infiltration
High-usage package and pedestrian pass doors available for special applications

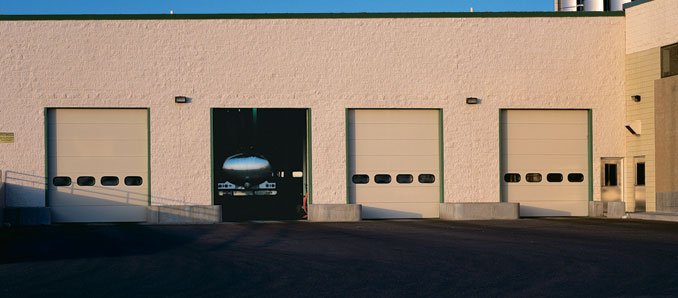

Commercial Sectional Steel Garage Doors

Overhead Door’s comprehensive line of sectional steel and insulated steel products encompasses one of the industry’s most complete selection of panel profiles, gauges, track styles and hardware for commercial sectional door systems.

Product Details

16,20, or 24-gauge steel door panels results in a solidly constructed door for years of dependable service.
Standard steel doors available in sizes up to 32’2″ (9804 mm) in width and 24’1″ (7336 mm) in height.
Insulated steel doors available in up to 32’2″ (9804 mm) in width and 24’1″ (7336 mm) in height.
Heavy-duty track and hardware are fabricated of high-quality galvanized steel and engineered for precise, trouble-free performance.
Flexible PVC bottom weatherseal lessens conductivity of heat and cold, minimizes air and water penetration, and accommodates irregular floor conditions.
Insulated steel doors provide thermal efficiency with an R-values of 7.35.
Baked-on, polyester paint finish eliminates field painting and provides long-lasting protection against the elements.
Superior panel strength and well-engineered track design meets windload requirements and codes.

Options

Full-section or individual-panel glazing satisfies requirements for external light and visitor
identification.
Higher-cycle springs in optional 25k, 50k, 75k or 100k-cycles promote long-life in high-usage applications.
Solid construction withstands windloading of 20 psf, with a higher windload option to meet requirements.
Optional steel strutting provides reinforcement for structural integrity on wider doors.
Electric and chain hoist operation, aluminum sash sections with choice of DSB, plexiglas, polycarbonate, tempered, or wire glazing, as well as movable center posts, 3″ (76 mm) track , Sup-UR-Seal jamb seals.

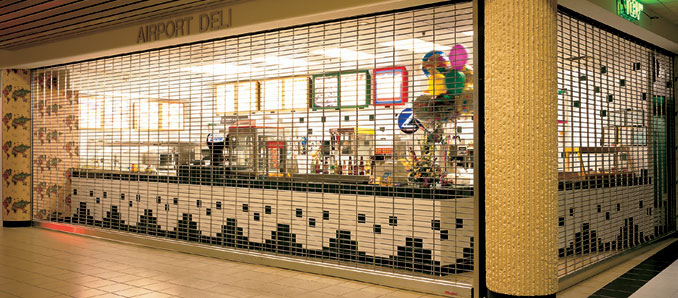

Commercial Security Grilles

Overhead Door Corporation’s security grilles provide an array of attractive solutions for a spectrum of retail, commercial and industrial applications. Our side-folding grilles boast the shortest stacking dimension of any grille available today, and feature a handsome clear anodized finish (standard) in a variety of patterns and optional colors. We also offer a complete line of upward-coiling grilles. Constructed of aluminum, stainless or galvanized steel — with optional electric motor — these grilles are designed for durability and easy operation. Our comprehensive line of security grilles affords both reliability and peace of mind.

Product Details

Panels fold to an average 2″ (51 mm) per linear foot of curtain on standard-width models, and an average 1 1/2″ (38 mm) per linear foot on wide-body models for superior compactness
Minimum clear pocket widths of 8″ (203 mm) on standard-width models. Minimum clear pocket widths of 13″ (330 mm) on wide-body models require less depth.
Low-profile, top-mounted aluminum track requires only 1 5/8″ (41 mm) headroom and 1 3/8″ (35 mm) width
Up to 2″ (51 mm) of vertical adjustment allows for easy field correction and accommodates irregular or non-level surfaces
Modular construction allows customization to fit any opening width
Choice of standard or wide-body panels (selected models) provides alternative stacking pocket depths to suit individual applications
Full height, countertop, multi-level, and cut-out styles, as well as irregular wall filler panels, allow adaptation to special applications and unusual designs
Four stock curves (90°, 120°, 135° and 150°) with standard 14″ (356 mm) radius for standard body and 22″ (559 mm) radius for wide-body panels allow unique design capabilities to close odd-shaped openings or follow lease lines
Additionally available special curves and radii afford limitless design possibilities

Options

Full-closure grilles available in tempered glass, fire-retardant polycarbonate, painted perforated steel, and aluminum curtains for added security and full functionality in any application
Open-air grilles maximize ventilation and visual access with out compromising security
Wide variety of side-folding grille curtain patterns and finishes, colors and styles afford design flexibility
Standard clear, clean anodized finish on all side-folding grilles lends unsurpassed beauty and durability
Unlimited custom-color matching is optionally available for most side-folding grilles in anodized, Duracron® acrylic paint, or powder-coat paint finishes

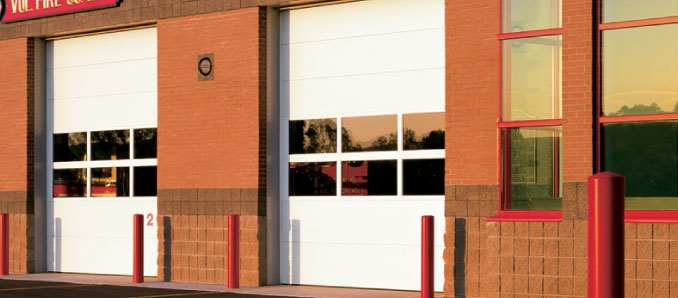

Commercial Thermocore Garage Doors

Thermacore® is the premier line of insulated doors available today. Thermacore® Series doors are an ideal choice for applications that demand the highest levels of thermal efficiency, air infiltration, and windload resistance.

Product Details

Max. widths up to 40’2″
Max. heights up to 32’1″
R-value up to 17.50 combined with air infiltration performance up to .08 cmf at 15 mph for superior thermal performance.
Thermal break prevents cold or heat from passing through the section
Between section seals contribute to superior thermal performance
Durable sandwich panel construction: steel-polyurethane-steel
Unique continuous hinge attachment strip allows sections to be cut to length to repair damage on site
Flexible bottom weatherseal with retainer lessens conductivity of heat and cold, minimizes air and water penetration, and accommodates irregular floor conditions
Insulation is CFC and HCFC Free Foam
Baked-on, polyester paint finish eliminates field painting and provides long-lasting protection against the elements

Options

Glazing
High cycle springs
Double end stiles
Heavy duty hardware
3″ track
Posi-Tension drums to eliminate cable jumping
Bottom sensing edge, photo eyes, and safety bottom fixture to catch sections should cable break
High windload
Four-section pass door
Rubber header seal and jamb weatherstripping
Exhaust ports
Elecric operator
Chain hoist

Commercial Garage Doors Los Angeles, Orange County, Riverside, San Bernardino

At Overhead Door Company of the Los Angeles Basin, we know the demands of your commercial garage door. That is why we build the toughest, highest quality commercial doors in the industry, constructed to withstand the daily weathering and erosion of owning and operating a business. Our company proudly possesses a complete selection of performance-and-safety-tested commercial and industrial overhead doors, including rolling-steel garage doors. From insulated and non-insulated doors for internal and external use to high-performance, sectional-steel and fire-rated doors, we manufacture a vast array of styles to meet your business needs. Each door is precisely tailored to our signature standard of excellence and backed by a dedicated nationwide network of Red Ribbon Distrubutors, making Overhead Doors commercial and industrial doors the premier choice for durability, serviceability and hassle-free performance.

Contact Us

We’re here to help with all your garage door needs whether it’s installation, repairs, or a free estimate. Reach out to the Overhead Door Company™ location nearest you.
